10 Element Antenna for the 433- MHz Band



10 Element Antenna for the 433- MHz Band



The publication is devoted to the memory of UR0GT.



Credit Line: Forum from:

www.cqham.ru

By: Nikolay Kudryavchenko, UR0GT





The 10 element antenna has good SWR from 430 to 434 MHz. Antenna has input impedance 28- Ohm. For matching of the antenna with 50- Ohm coaxial cable there is used known matching device on two parallel length of 75- Ohm coaxial cable.

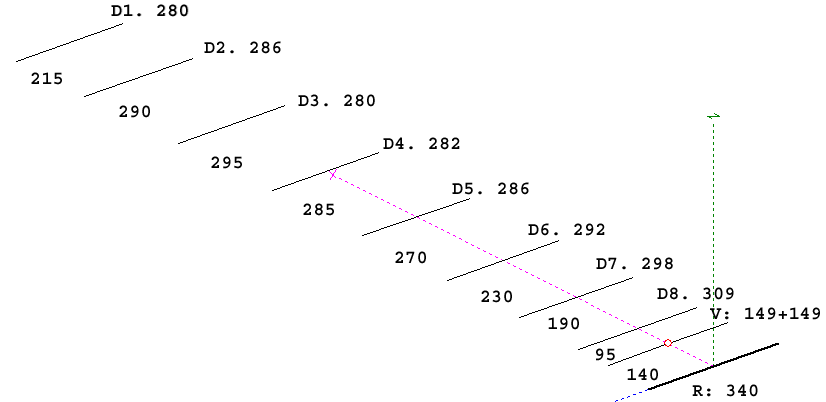

Design of the 10 Element Antenna for the 433- MHz Band is shown on Figure 1.

Length of the elements and distance between them is in mm. Diameter of the element is 10- mm. Matching device 28/50 Ohm is shown on Figure 2.



Figure 3 shows Z of the 10 Element Antenna for the 433- MHz Band. Figure 4 shows SWR of the 10 Element Antenna for the 433- MHz Band. Figure 5 shows DD of the 10 Element Antenna for the 433- MHz Band.



73! Nick, UR0GT

The MMANA model of the Simple Antenna for the 435- MHz Band may be loaded: http: //

www.antentop.org/022/433_ur0gt_022.htm







Figure 1

10 Element Antenna for the 433- MHz Band





Figure 2

Matching Device for the 10 Element Antenna for the 433- MHz Band
