The
antenna, working Version 20.23.63, has sizes 1 x 2 meters and
designed for installing at a limited space. The antenna made like

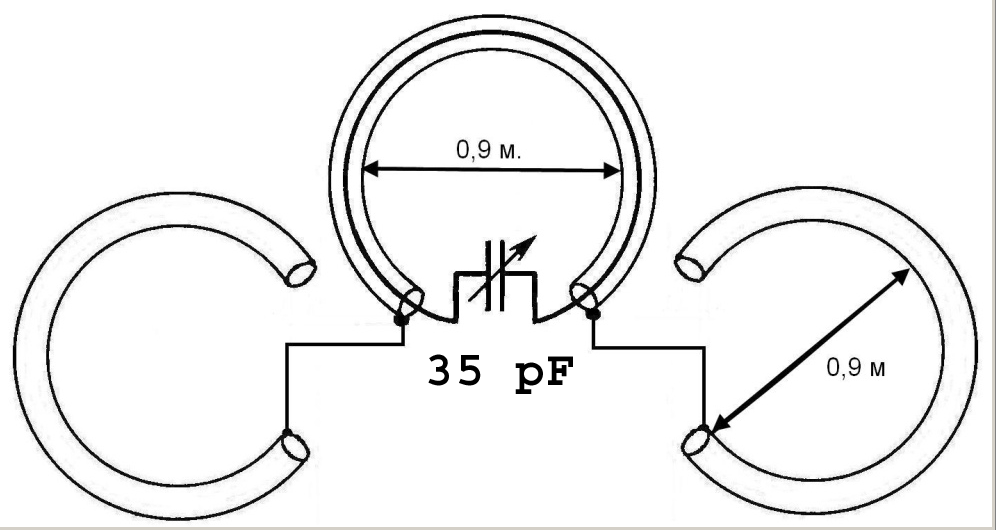

an experimental one and showed good result at the Air test. Figure 1 shows schematic of the antenna.
|
As it is shown from the Figure 1 the schematic of the antenna
is traditional as for all UA6AGW antennas and does not required
additional comments. Design of the antenna is shown on the Figure 2.
|
Design of the UA6AGW Balcony Antenna:
Main loop made of from a ½ inch coaxial cable
used at sites of the cell communication. Two horizontal vibrators
of the antenna made of aluminum Hula Hoop in diameter of 90- cm.
The Hula Hoop is cutting at the place of the jointing. Then the ends of the rings are separated on the distance 3- 4 cm with help of a plastic
insertion. The Hula Hoop is connected to the main loop with help
of a tinned copper wire in diameter of 3- mm. The wire is soldered
to the main loop and connected to the Hula Hoop with help of a
clamp.
Tuning capacitor is placed inside a plastic electro-technical
box. The capacitor should stand the power going to the antenna
in common case (at 100- W transceiver) the capacitor should have
gap between plates in 2- mm.
|
![](files/figure_02_balcony.jpg)
Figure 2 Design of the UA6AGW Balcony Antenna
|
