Tin Woodman Antenna for the 50- MHz Band: by: Igor Vakhreev, RW4HFN

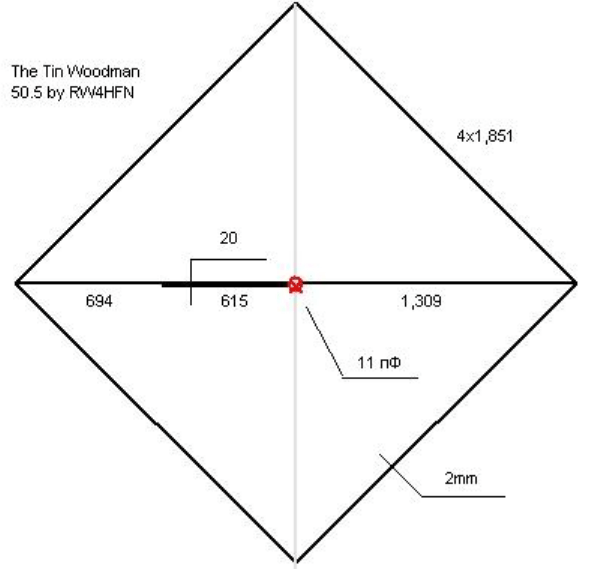

There is presented Tin Woodman Antenna for the 50- MHz Band. The antenna is very simple in design. The antenna is electrically closed so this one is safe in a lighting period. Antenna has good SWR at the band. Antenna has 50- Ohm input impedance that allows feed the antenna directly by 50- Ohm coaxial cable. Antenna allows to be made with some tolerance. Antenna installed on a mast in 6 meter high...



PDF file, 220 KB (ANTENTOP-01-2018, pp.: 34- 35)
