UR0GT Directional DEWD Antenna

for the 145- MHz Band

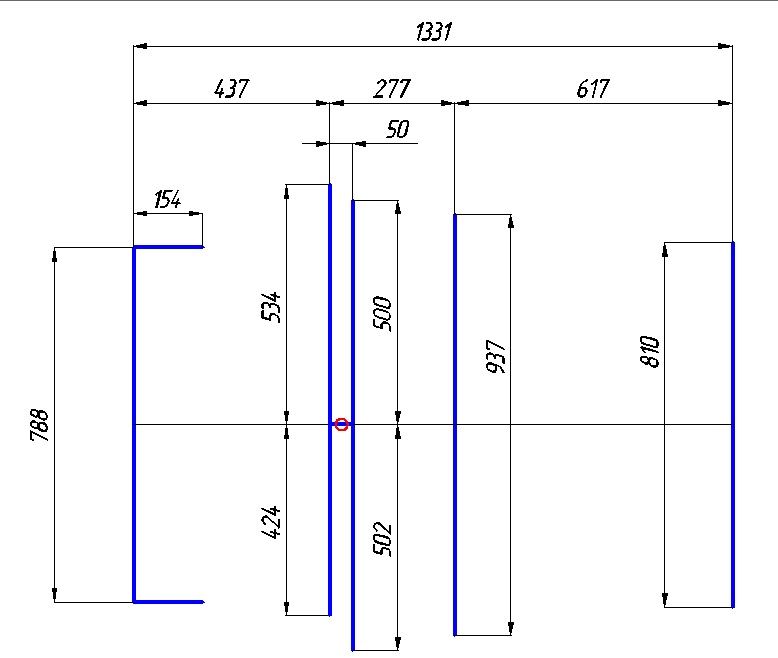

UR0GT Directional DEWD Antenna for the 145- MHz Band: by: Yuriy Skutelis, RN3DEK

There is presented directional antenna for the 145- MHz Band with active vibrator made on the base of UR0GT DEWD Antenna. Antenna has good SWR at the band and excellent F/B ratio. Antenna does not require follow to strictly dimension of the elements. So the antenna may be done ever by a ham who has no large experience in the antenna building…



PDF file, 180 KB (ANTENTOP-01-2018, pp.: 55- 56)

Download PDF File!

MMANA File

HTML Version

Contents for AntenTop 01- 2018





UR0GT Directional DEWD Antenna for the 145- MHz Band
