ANTENTOP- 01- 2017 # 021

Six Elements Antenna for the 70- cm Band











By: Yuriy Skutelis, RN3DEK

Credit Line: Forum at cqham.ru





There is presented simple six element antenna for the 70- cm Band. Antenna has excellent SWR and F/B ratio. Antenna does not require follow to strictly dimension of the elements. So the antenna may be done ever by ham, who has no large experience in the antenna building.



Antenna has 50- Ohm input impedance that allows feed the antenna directly by 50- Ohm coaxial cable. Figure 1 shows schematic of the antenna. All elements of the antenna made of tube/rod in diameter 5- mm. It is possible use copper or aluminum stuff. Antenna has dielectric traverse. Dimensions are given in millimeter.



The antenna has reflector with bent ends. It is done to improve F/B ratio. Anyway you may play with model of the antenna in MMANA and check what you could reach.





Figure 2 shows Z of the antenna. Figure 3 shows SWR of the antenna. Figure 4 shows DD of the antenna.



73! RN3DEK





MMANA File of the Six Elements Antenna for the 70- cm Band may be downloaded at:

http://www.antentop.org/021/RN3DEK _021.htm

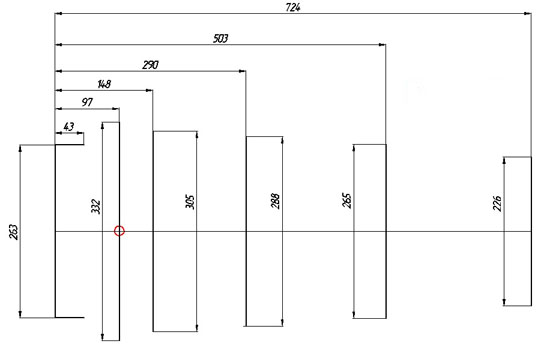

Figure 1

Six Elements Antenna for the 70- cm Band





www.antentop.org

Page- 57
