ANTENTOP- 01- 2016, # 020

Compact Antenna for 160- meter Band for the DX- Window

The publication is devoted to the memory UR0GT.



Credit Line: Forum from:

www.cqham.ru

By: Nikolay Kudryavchenko, UR0GT





Below described Compact Antenna for 160- meter Band for the DX- Window. Model of the antenna made by UR0GT. Antenna has “compact” sizes related to the 160- meter band. However with the dimensions the antenna has good parameters at the DX- Window at the 160- meter Band. Figure 1 shows design of the antenna. Figure 2 shows schematic of the antenna.

 Figure 3 shows Z of the antenna. Figure 4 shows SWR of the antenna. Figure 5 shows DD of the antenna.

 Simulation was made at the antenna height 2 meters above the real ground. Antenna may be scaled to another amateur’s HF band.



Figure 1 3D View of the antenna



The MMANA model of the Compact Antenna for 160- meter Band for the DX- Window may be loaded: http: //

www.antentop.org/020/160_ur0gt_020.htm

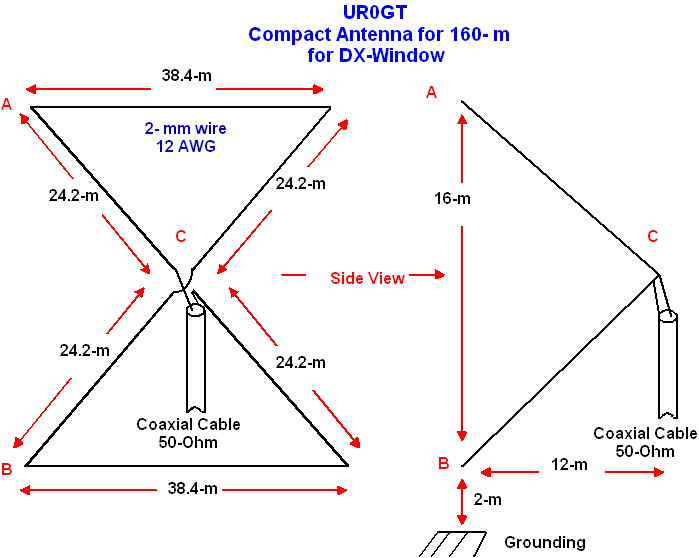

Figure 2 Compact Antenna for 160- meter Band for the DX- Window



www.antentop.org

Page- 52
