Beverage Antenna. Theoretical Look on Practical Result.







Table 4



Data for Beverage Antenna placed at 4 meter above the Ground (Figure 31), simulated with NEC for MMANA



Band

160

80

40

30

20

17

15

12

10



Z

166-713

641-J145

462-J91

439+J4

554+J14

643+532

386_284

1399_J288

912+1580



SWR

9.77

1.56

1.22

1.03

1.23

2.75

1.99

3.26

8.49



Gain

-15.89

-10.44

-6.73

-4.3

-1.42

-0.2

1.69

3.65

0.42

At Vertical degree

49

71

86

74

62

33

51

34

47





Below Figure 32 to Figure 40 show DD of the Beverage Antenna at the 160, 80, 40, 30, 20, 17, 15, 12 and 10- meter Bands in the vertical plane. Feedline with matching transformer is on the left side and the termination resistor is on the right side of the figures.



As you can see from the Figure 32 - Figure 40 the DD of the Beverage Antenna with horizontal wire placed at height 4 meter above the ground looks better compare to my classical Beverage Antenna shown at Figure 1. However lost 12 and 10- meter bands and complexity with installation of the horizontal wire did not compensate the new antenna advantages.







Figure 32

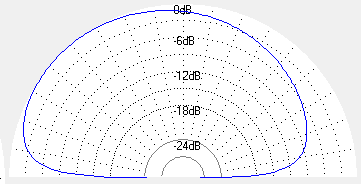

DD of theoretical Beverage Antenna with horizontal wire placed at height 4 meter above the ground at 160- Meter Band







Figure 33

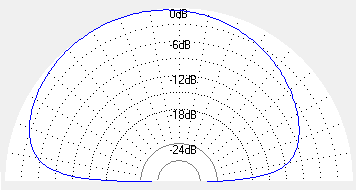

DD of theoretical Beverage Antenna with horizontal wire placed at height 4 meter above the ground   at 80- Meter Band





Figure 34

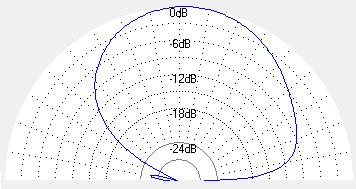

DD of theoretical Beverage Antenna with horizontal wire placed at height 4 meter above the ground   at 40- Meter Band









www.antentop.org

Page- 41
