Short Five Elements Antenna for the 70- cm Band

Short Five Elements Antenna for the 70- cm Band: By: Yuriy Skutelis, RN3DEK

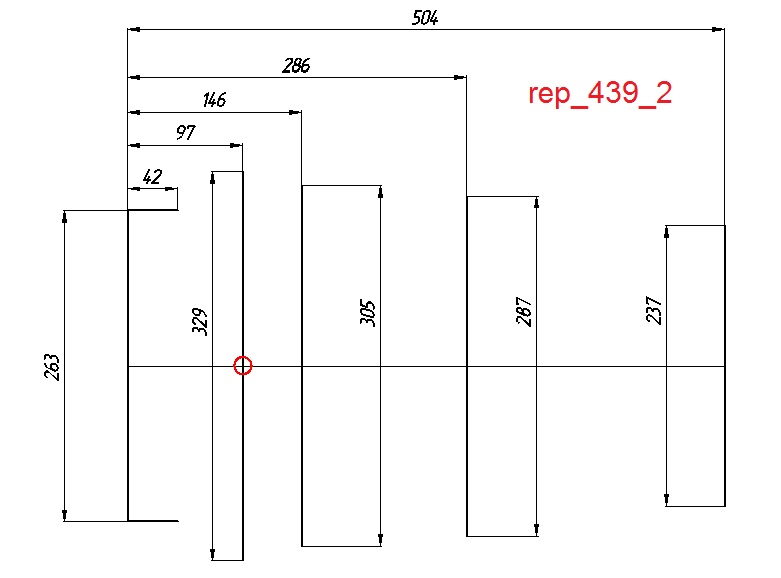

Short Five Elements Antenna (length 50- cm) made of aluminum rod (or tube) in diameter 5- mm. Antenna designed for repeater sub- band. Antenna has gain near 7.4- dBd at 439.0- MHz. F/B at the frequency is 35.9 dB....



PDF file, 220 KB (ANTENTOP-01-2016, pp.: 67- 68)

Download PDF File!

MMANA FILE

HTML Version
