Broadband Five Elements Antenna for the 70- cm Band

Broadband Five Elements Antenna for the 70- cm Band: By: Yuriy Skutelis, RN3DEK

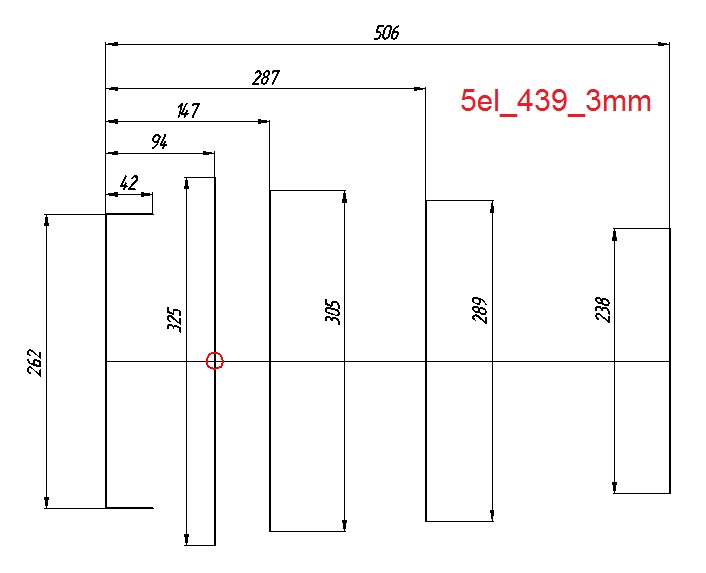

Broadband Five Elements Antenna (length 50- cm) designed on the base of Short Five Elements Antenna for the 70- cm Band (Antentop 01- 2016). The antenna has low SWR at the upper edge of the 70- cm Band. Antenna made of aluminum rod (or tube) in diameter 3- mm. Antenna has gain near 7.2- dBd at 439.0- MHz. F/B at the frequency is 35.3 dB....



PDF file, 220 KB (ANTENTOP-01-2016, pp.: 69- 70)

Download PDF File!

HTML Version

MMANA FILE
