ANTENTOP- 01- 2015 # 019

Three Element Yagi Antenna for 145- MHz with Rectangle Reflector







By: Yuriy Skutelis, RN3DEK



The antenna has F/B ratio at least 29 dB. It was reached by special form of the reflector. Figure 1 shows design of the antenna. Reflector of the antenna made of aluminum wire in diameter 5- mm. Elements of the antenna made of aluminum tube in diameter 8- mm. Boom of the antenna made from dielectric stuff. Gamma matching used to feed the antenna. It is because “pure” antenna has input impedance close to 40- Ohm. Figure 2 shows design of the gamma matching.



Figure 3 shows input impedance of the antenna. Figure 4 shows SWR of the antenna. Figure 5 shows DD of the antenna.



MMANA File for the Three Element Yagi Antenna for 145- MHz with Rectangle Reflector may be loaded at: http: //

www.antentop.org/019/rectangle_019.htm

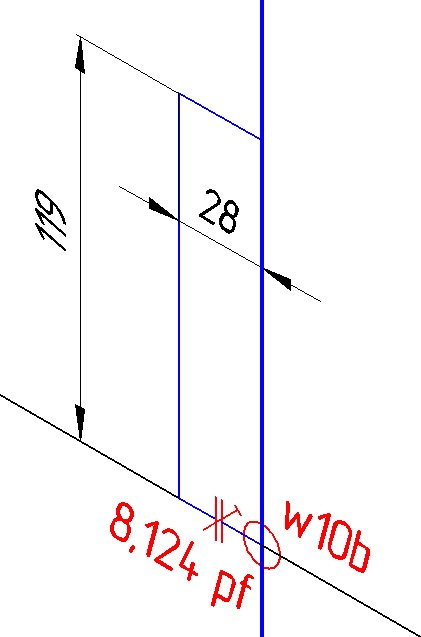

Figure 2 Gamma matching

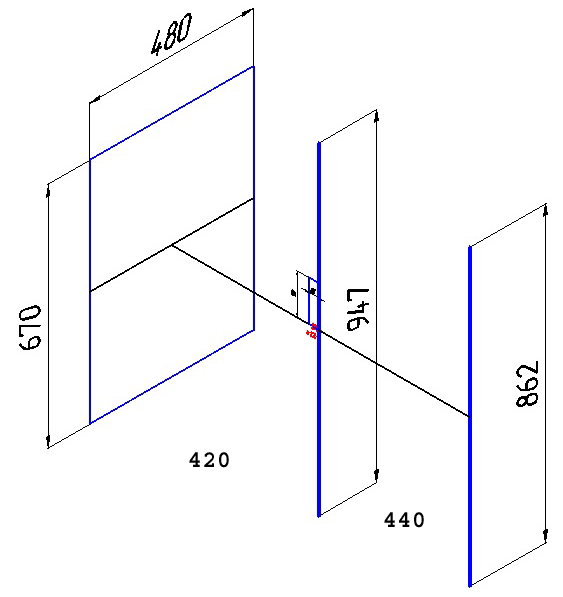

Figure 1 Three Element Yagi Antenna for 145- MHz with Rectangle Reflector





www.antentop.org

Page- 67
