Modified DL1BA Dipole Antenna for 40- and 20- meter Bands with additional 10- or 15- meter Band











By: Igor Vakhreev, RW4HFN





 DL1BA Antenna (Antentop 01- 2015, pp: 53-55, Dipole Antenna for 40- and 20- meter Bands) may be modified for working at additional 10- or 15-meter Band.  Figure 1 shows design of the antenna.



As you can see from the Figure 1 parts for additional band are added into the antenna design.

The MMANA file of the Modified DL1BA Dipole Antenna for 40- and 20- meter Bands with additional 10- or 15- meter Band may be loaded: http: // www.antentop.org/019/rw4hfn_modified_dipole_019.htm



Simulation of the antenna in MMANA showed that the antenna may be tuned at resonance at all of three Bands.

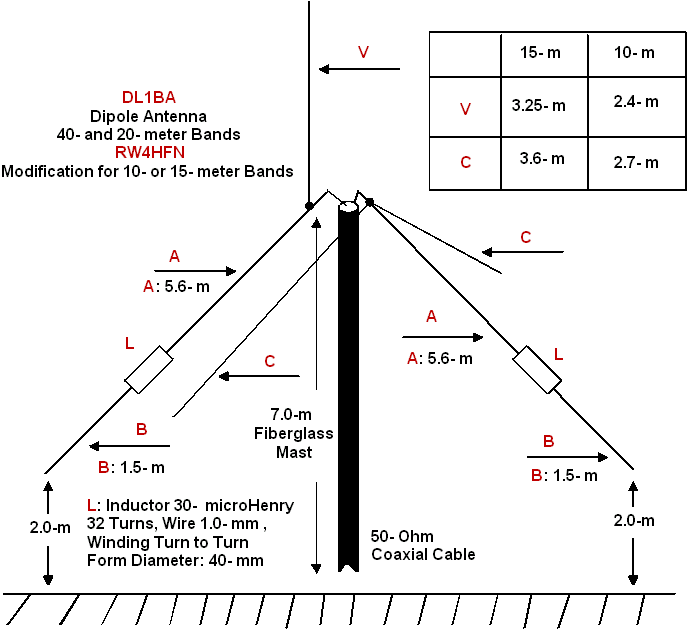

Figure 1 Modified DL1BA Dipole Antenna for 40- and 20- meter Bands with Additional 10- or 15- meter Band
