Modified Dipole Antenna DL1BA for 40- and 20- meter Bands: By: Igor Vakhreev, RW4HFN

Credit Line: Forum from:
www.cqham.ru

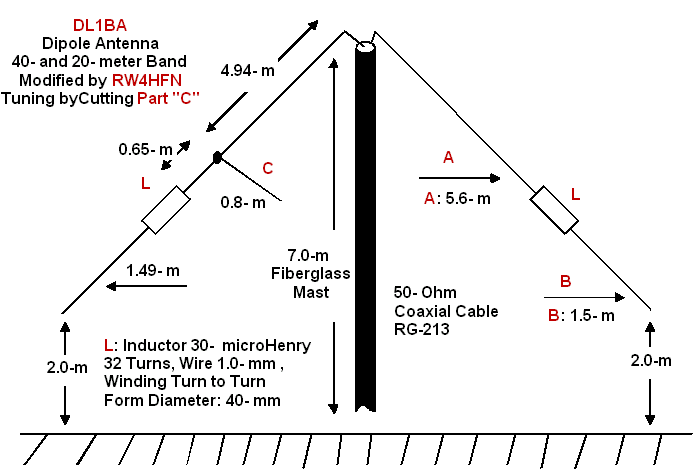

In my opinion the explanation how the DL1BA Antenna (Antentop 01- 2015, pp: 53-55, Dipole Antenna for 40- and 20- meter Bands) is working at the 20- meter Band is very simple. Parts of the antenna- there are long wire (5.6-meter length) before inductor, inductor and short wire (1.5- meter length) after inductor - make 1.5- lambda dipole at the 20- meter Band....



PDF file, 160 KB (ANTENTOP-01-2015, pp: 56- 57)

Download PDF File!

MMANA File

HTML Version
