L-Vertical Antenna for Nearest Objects for the 40- and 20- meter Bands
: By: Nikolay Kudryavchenko, UR0GT

One L-Vertical Antenna may works at the two amateur Bands- 40- and 20- meters. The main feature of the antenna is that it may be located at nearest conductive objects- for example the antenna may be placed near water drain. Antenna may be placed at a wall of a house. Inside a house there are always a lot of conductive objects- for example electrical main, refrigerator, metal tubes of house ventilation system and so on....

PDF file, 300 KB (ANTENTOP-01-2015, pp: 32- 34)

Download PDF File!

MMANA File

HTML Version

Contents for AntenTop 01- 2015

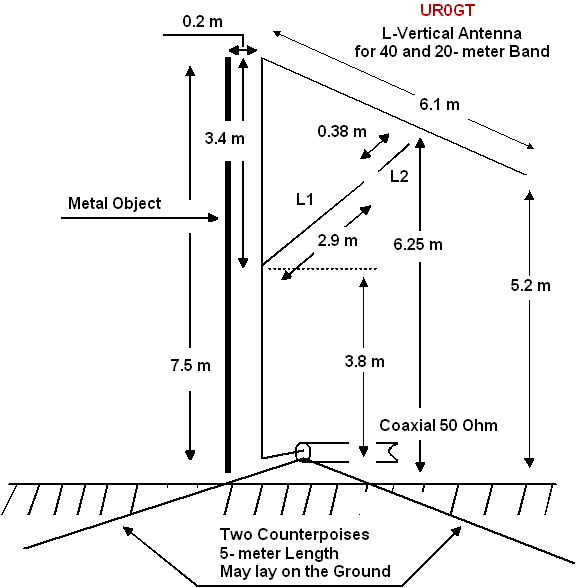

Design of the L-Vertical Antenna
