ANTENTOP- 01- 2014, # 018

Car Antenna for 435- MHz



The publication is devoted to the memory UR0GT.



Credit Line: Forum from:

www.cqham.ru



By: Nikolay Kudryavchenko, UR0GT





The Car Antenna for the 435- MHz has very good parameters- circle DD in Horizon Plane and small angle lobe at Vertical Plane. Antenna has input impedance 50- Ohm. Antenna has wide pass band.

  Ground of the antenna should be connected to metal part of the Magnet Base. The capacitance between the magnet Base and Car body is enough for good performance of the antenna. Antenna should be placed at the center body of the car- it may be roof of trunk of the car.

 Of course, the antenna may be done in base variant- with usual lambda/4 counterpoises. Figure 1 shows two versions of the antenna- - short and long ones.





Figure 2 shows impedance of the short Car Antenna for the 435- MHz. Figure 3 shows SWR of the short Car Antenna for the 435- MHz. Figure 4 shows DD of the short Car Antenna for the 435- MHz.



Figure 5 shows impedance of the long Car Antenna for the 435- MHz. Figure 6 shows SWR of the long Car Antenna for the 435- MHz. Figure 7 shows DD of the long Car Antenna for the 435- MHz.



The MMANA file of the Car Antenna for the 435- MHz may be loaded at: http: //

www.antentop.org/018/car_antenna_018.htm

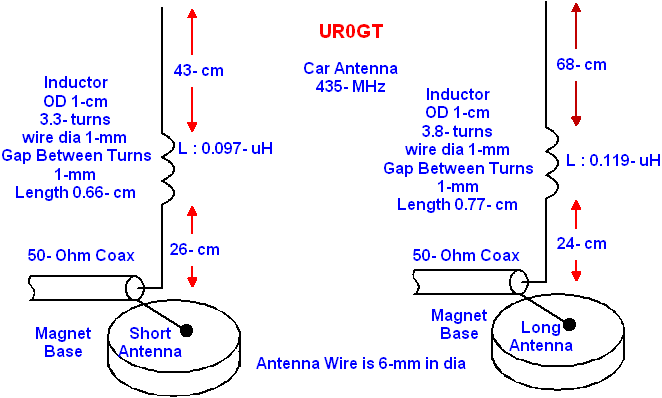

Figure 1 Car Antenna for the 435- MHz



www.cqham.ru



www.antentop.org

Page- 61
