Delta Antenna for 80-. 40-, 20- and 15- meter Bands

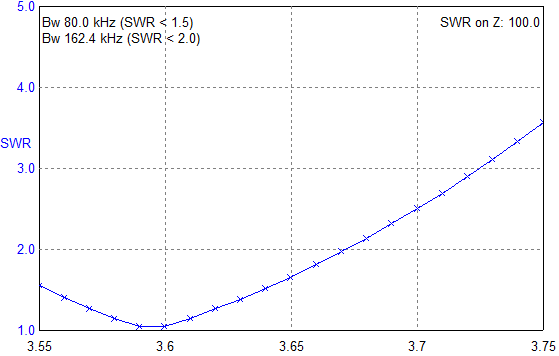

Figure 2 shows SWR at 80- meter Band for version 1.

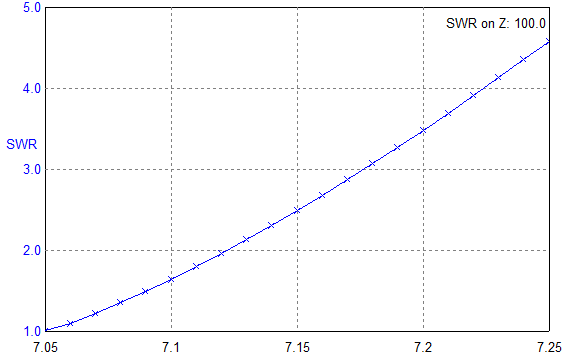

Figure 3 shows SWR at 40- meter Band for version 1.

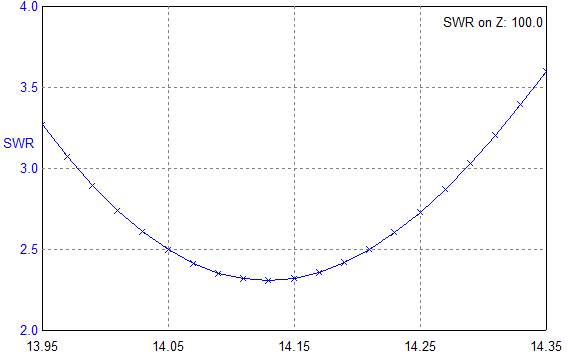

Figure 4 shows SWR at 20- meter Band for version 1.

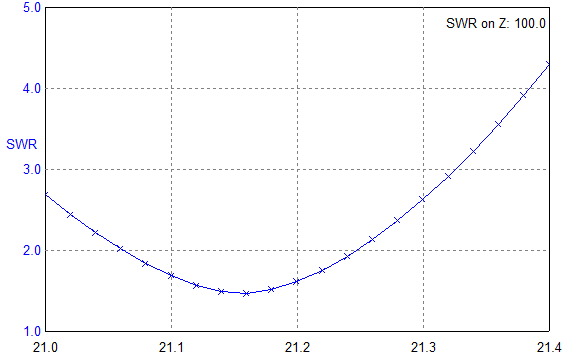

Figure 5 shows SWR at 15- meter Band for version 1.

Antenna is placed at height 15- meter above the ground.

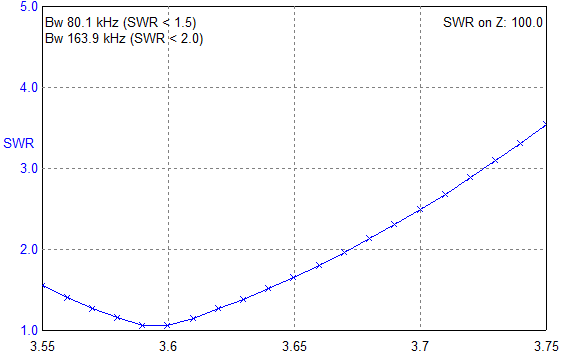

Figure 6 shows SWR at 80- meter Band for version 2.

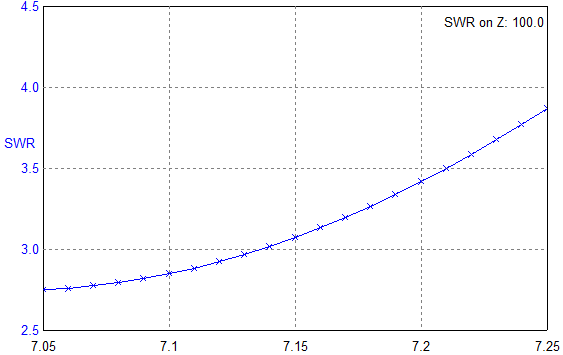

Figure 7 shows SWR at 40- meter Band for version 2.

Figure 8 shows SWR at 20- meter Band for version 2.

Figure 9 shows SWR at 15- meter Band for version 2.

Antenna is placed at height 15- meter above the ground.





Figure 2 SWR at 80- meter Band for version 1





Figure 3 SWR at 40- meter Band for version 1





Figure 4 SWR at 20- meter Band for version 1





Figure 5 SWR at 15- meter Band for version 1



Figure 6 SWR at 80- meter Band for version 2







Figure 7 SWR at 40- meter Band for version 2
