ANTENTOP- 01- 2014 # 018 |
Shortened Antenna G5RV for 14- 50-
MHz Bands |
|
|
|
|
|
|
|
|
|
|
|
Alex Karakaptan, UY5ON, Kharkov,
Ukraine |
|

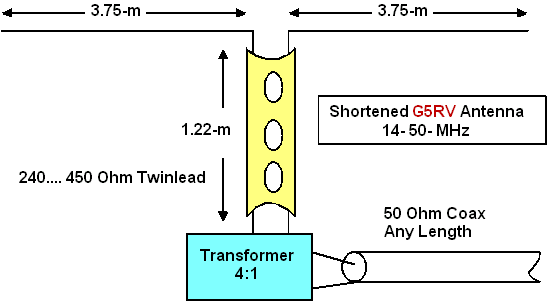

Shortened antenna G5RV
is a variant classical G5RV with shortened radiation parts and
shortened matching two-wire line. Amateur's Bands within 14- 50-
MHz spread are mostly welcome for DX operation. So in most cases
the antenna could provide good operation with DX- stations. Antenna
takes small room. |
Any limited space-
balcony, windows are suitable for the antenna. Antenna may be
placed in horizontal placement or similar to an I.V. Antenna could
work at the 70- MHz band when proper transformer 4:1 is used.
At some cases an ATU installed between coaxial cable and transceiver
would be useful. Credit Line:
forum at cqham.ru |
|
Shortened Antenna G5RV for 14- 50- MHz Bands |
|
|
|
|
|
|
|
|
|
|
|
|
Page- 47 |
