Field Antenna UA6AGW V.40.21





However every next plates of the capacitor are removed (to increase the working voltage). The capacitor connected to the loop only by two stator sections

Picture 3 shows ends of the fishing cord. Picture 4 shows connection box of the antenna. Picture 5 shows horizontal wires at the connection box.





Picture 1 Loop of the Field Antenna UA6AGW V.40.21





Picture 2 Traverse of the Field Antenna UA6AGW V.40.21





Picture 3 Ends of the Fishing Cord



Figure 2 shows the coupling loop before it is circulated to loop. Length of the coaxial cable to be used for the coupling loop is 200- mm. Plastic from the length of the coaxial cable is removed on to 10- mm in the center and from two ends. Then braid of the coaxial cable is removed at the center. Inner conductor is soldered to the braid at the far (right) end of the length. Then the cable is turned to loop. Far end of the length is soldered to the first (left) side of the prepared cable. The coupling loop is fastened to the upper part of the antenna’s loop with help of a Scotch and ties. Below there are several simple rules how to install the coupling loop.



At first, find on the antenna loop a point that is equidistance from left and right side of the C2. It is the point of symmetry of the antenna.

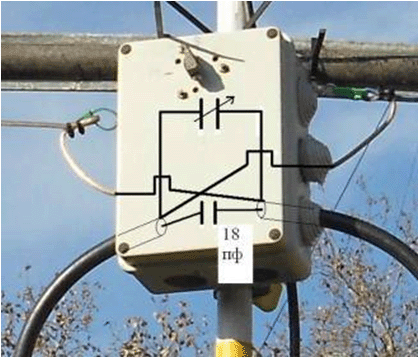

Picture 4 Connection box

Picture 5 Horizontal Wires at Connection Box
