Simple Broadband Antenna for the 40- meter Band

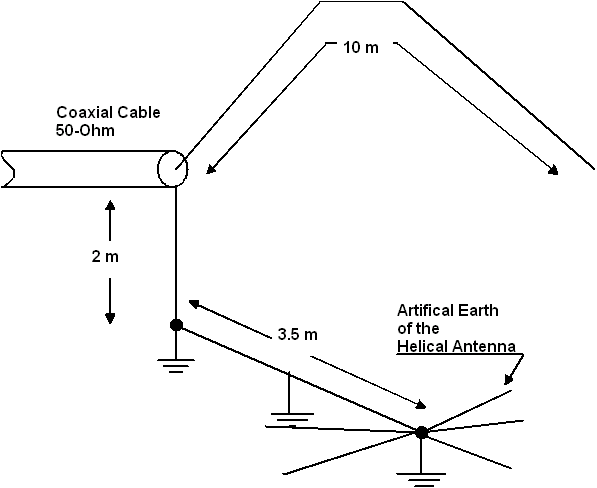

Figure 3 Schematic of the Simple Broadband Antenna for the 40- meter Band

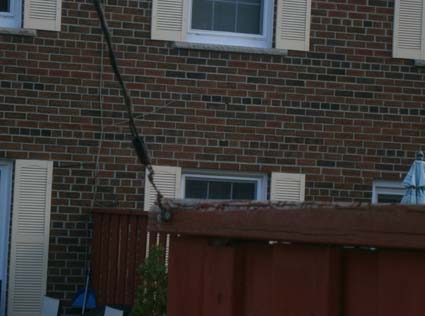

Picture 3 Tuning End of the Simple Broadband Antenna for the 40- meter Band





Picture 4 Coaxial Cable going along the Fence



A connection box was installed at the feed point of the antenna. Figure 4 shows drawing of the box. Box made of the base a plastic food container. An RF socket SO-239 was installed at the box.

Feeding coaxial cable was connected to the socket. Arrestor resistor 4k7/5-Wtt was soldered to the bridge of the socket.
