All- Metal Three Element Antennas for the 145- MHz Band

Second of the files contained a wide known Hentenna Antenna. The antenna is not sensitive to nearest objects. Antenna elements maybe make from a length of a strand aluminum wire or a copper tube. Parameters of the Hentenna Antenna are better compare to the antenna UA0SNM.







Figure 11 shows design of the antenna. The antenna may be made of a copper tube or stranded aluminum wire. Diameter of the tube or wire may be 6 12- mm. Figure 12 shows impedance of the Three Element Hentenna Antenna for the 145- MHz Band. Figure 13 shows SWR of the Three Element Hentenna Antenna for the 145- MHz Band. Figure 14 shows DD of the Three Element Hentenna Antenna for the 145- MHz Band.



File MMANA for the Three Element Hentenna Antenna could be downloaded at: http://www.antentop.org/017/all_metal_017.htm





Figure 11 Design of the Three Element Hentenna Antenna for the 145- MHz Band

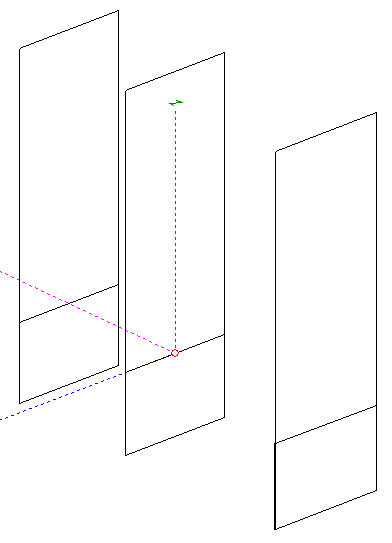

A: 3D View











Figure 11 Design of the Three Element Hentenna Antenna for the 145- MHz Band

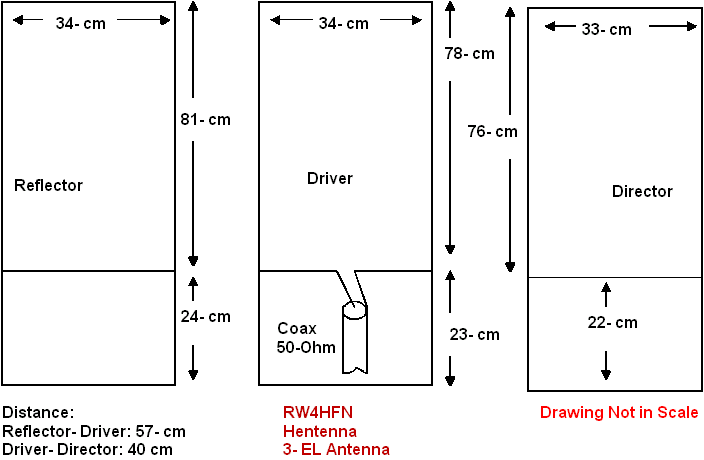

B: Each Element Design
