UR0GT Antenna for the 145 and 50- MHz Band





The publication is devoted to the memory UR0GT.

Credit Line: Forum from:

www.cqham.ru



By: Nikolay Kudryavchenko, UR0GT





The simple antenna effectively works for 145 and 50- MHz. It is a symmetrical antenna. However, unsymmetrical version of the antenna is still working. For the antenna ground should be used good conductivity surface or several resonance counterpoises for each band.

Figure 1 shows design of the antenna.



Figure 2 shows Z of the antenna on the 50- MHz Band. Figure 3 shows SWR of the antenna on the 50- MHz Band. Figure 4 shows DD of the antenna on the 50- MHz Band.



Figure 5 shows Z of the antenna on the 145- MHz Band. Figure 6 shows SWR of the antenna on the 145- MHz Band. Figure 7 shows DD of the antenna on the 145- MHz Band.

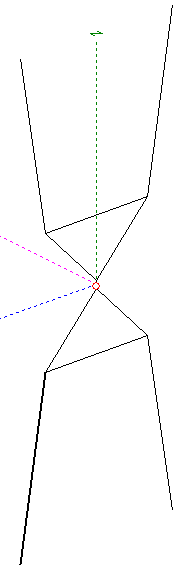

The MMANA model of the Dual Antenna may be loaded: http: // www.antentop.org/017/dual_ur0gt_017.htm



73! UR0GT

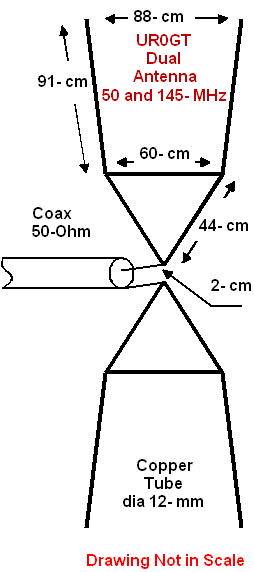

Figure 1 Design of the UR0GT Antenna for the 145 and 50- MHz Band
