Helical Antenna for the 20- meter Band

Custom Search



ANTENTOP- 01- 2013 # 017

Helical Antenna for the 20- meter Band

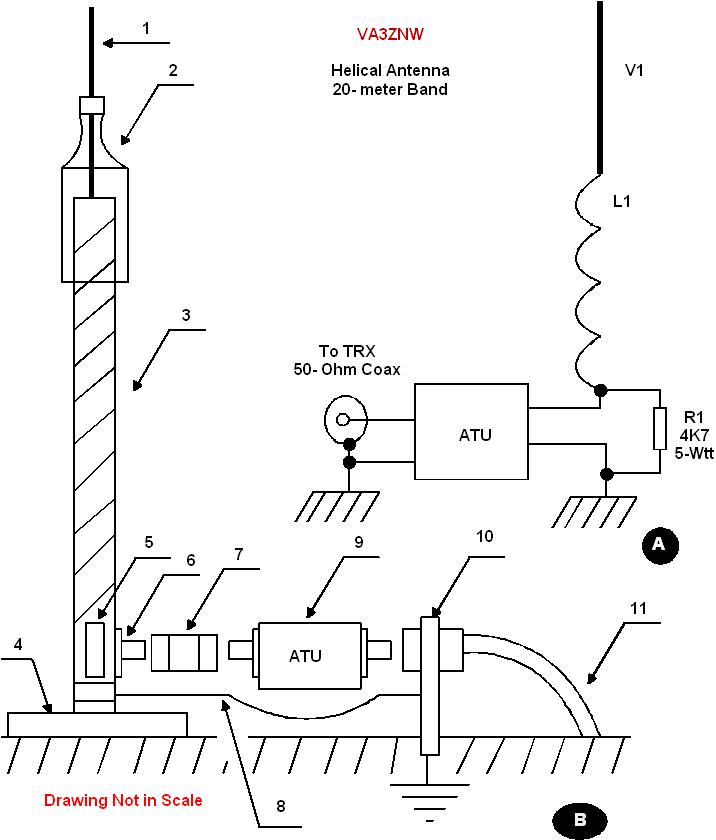

Figure 1 Schematic (A) and Design (B) of the Helical Antenna for the 20- meter Band



The input impedance of the helical antenna is strongly depends on the quality of the antenna grounding. With good antenna grounding the antenna should have input impedance around 8- 12- Ohm. For example, when I disconnected the antenna grounding system (www.antentop.org/017wires_017.html) and the antenna ground was only metal base of the microphone stand connected with the earth the antenna had input impedance 70- Ohm.

The low input impedance of the helical antenna is matched with 50- Ohm- coaxial cable with help of a simple ATU. Figure 2 shows the schematic (A) and the design (B) of the ATU. Parameters of parts of the ATU are calculated by me with the help of the free antenna simulator MMANA.









www.antentop.org

Page- 45
