Aleksandr Grachev, UA6AGW



Credit Line: CQ-QRP # 34, pp.: 23- 29







Two HF- antennas for 80- and 40- meter Bands are described below. The antennas were created after my experimenters with magnetic Loop Antennas (Reference 1).



Antenna for the 40- meter Band



Figure 1 shows sketch of the antenna. Loop of the antenna made of a length a coaxial cable marked as LCFS 114-50 JA, RFS (15239211). Figure 2 shows the cable. Outer tube of the coaxial cable has diameter near 25- mm (1 inch). Inner conductor of the cable is a copper tube in diameter of 9- mm (3/8 inch).

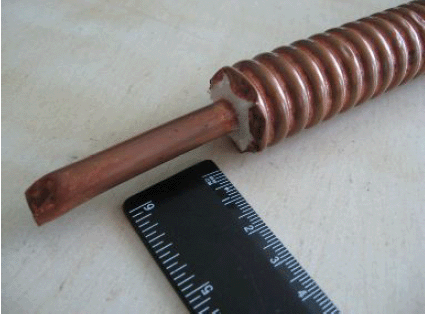

Figure 2 Coaxial cable LCFS 114-50 JA, RFS (15239211)

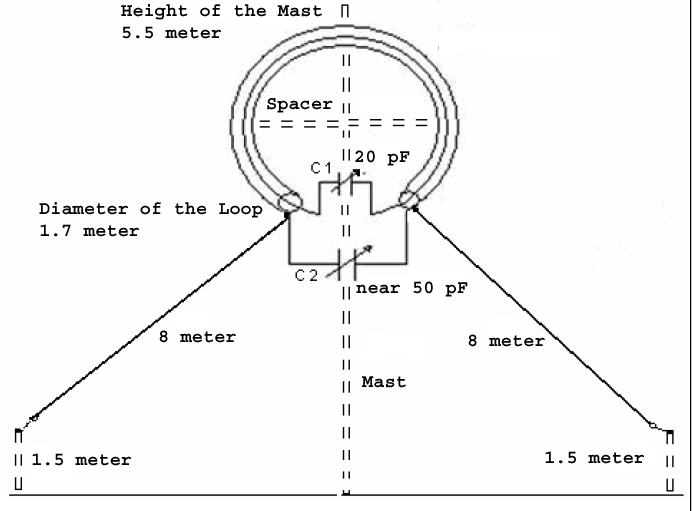

Figure 1 Antenna UA6AGW for the 40- meter Band
