Broadband Sloper for the 80- meter Band

Broadband Sloper for the 80- meter Band: by: Vladimir Fursenko, UA6CA: Credit Line: http://www.cqham.ru/ant80.htm

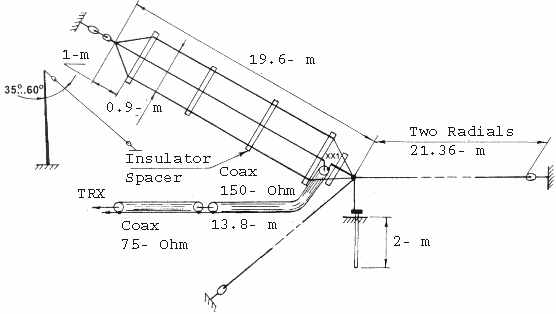

The antenna works with good SWR at the frequencies 3.500- 4.000- kHz. All antennas, what I made before (there were I.Vs., dipoles and slopers) did not work at such wide band. The antenna has input impedance 75- Ohm. It allows use a chip TV coaxial cable for the feeding of the antenna. The 75- Ohm coaxial as usual is matched well with the 50- Ohm output of the transceiver...



PDF file, 90 KB (ANTENTOP-01-2013, p.: 47)

Download PDF File!

HTML Version
