ANTENTOP- 01- 2012, # 016

Autodyne Synchronous Regenerative Receiver

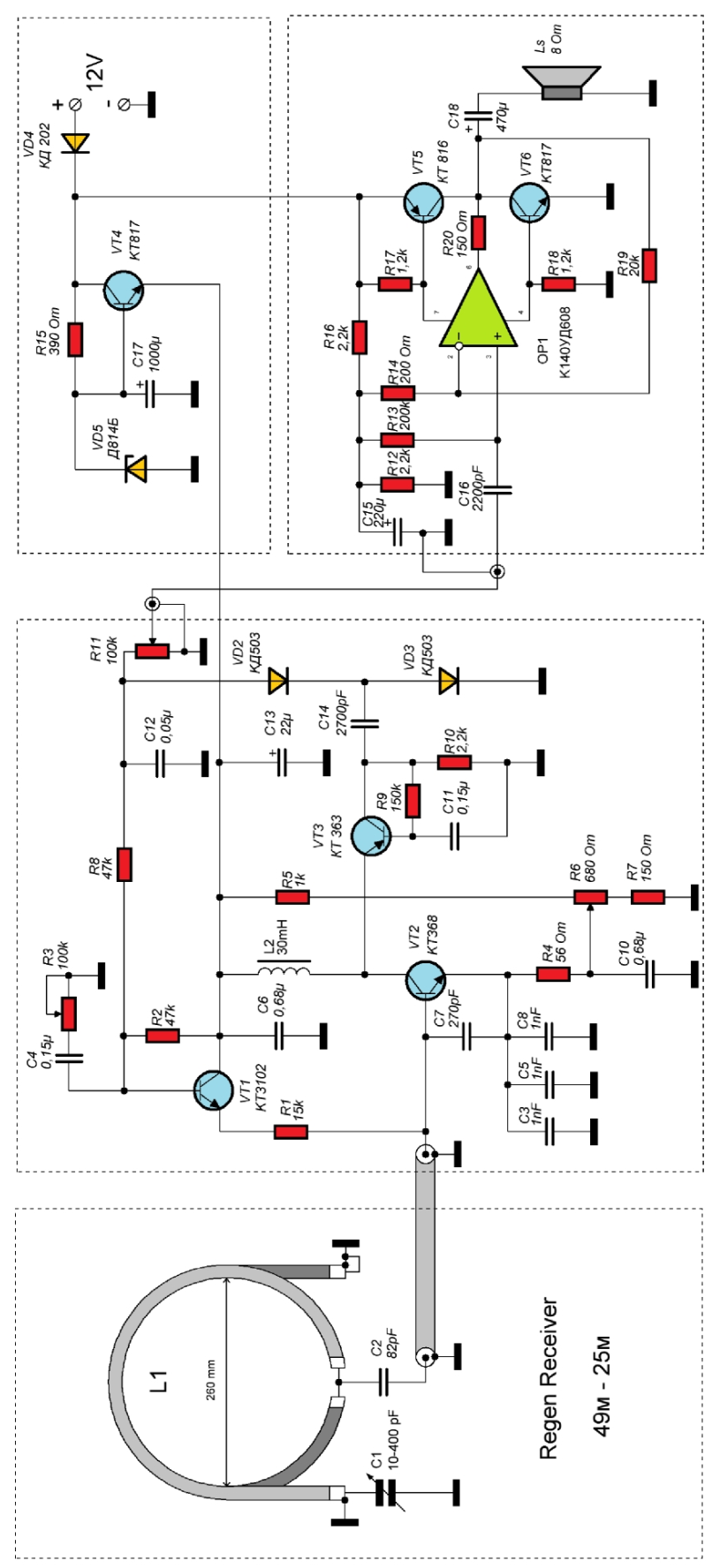

Figure 2 Improved Variant of the Autodyne Synchronous Regenerative Receiver



It should be used quality variable capacitor with air dielectric and vernier device. L1 should be soldered straight away to the capacitor.

73 and good luck!

Reference 1.

Regenerative Receiver, S. Kovalenko, Radio # 2, 1999



www.antentop.org

Page- 86
