ANTENTOP- 01- 2012, # 016

Underground Can Antenna







Credit Line:

http://russianarms.mybb.ru/viewtopic.php?id=1323









At articles about Underground Antennas that were published at Antentop there are pictures of Underground Antennas that look like a giant plate or giant up- down can. What is inside of the monster? At Antentop there were several version of the inside design. Below one more version and some more pictures of the underground cans are included.



From Forum at http://russianarms.mybb.ru/

Bruschatka is a standard military radio antenna used by Russian Army. Brus4atka looks like a gint up- down can. The can has weight near 7-tonn. The antenna may be included in the family radiation slot antenna. A high quality dielectric is inside of the can. Base of the antenna made from concrete.

Antenna is covered by waterproofing covering. Cone in the center of the antenna is electronic/electrical service” center.

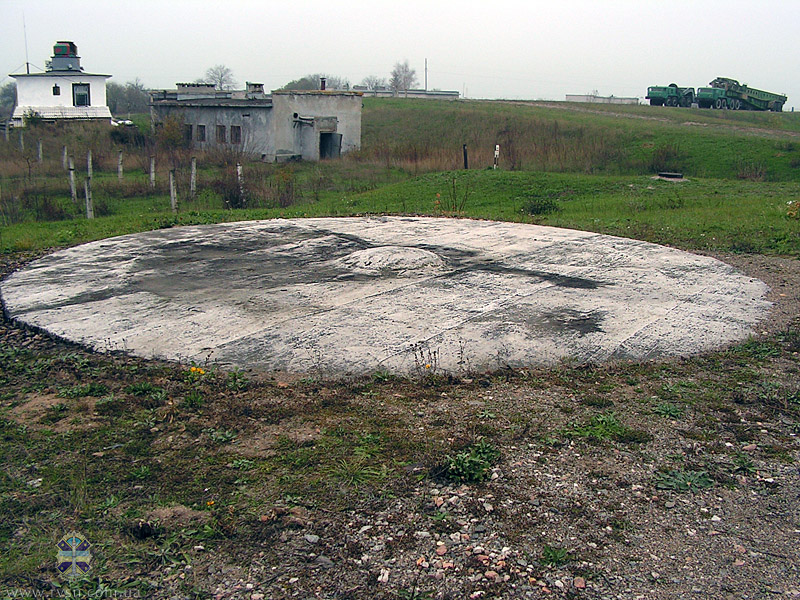

Antenna Bruschatka







www.antentop.org

Page-81
