Antenna for Two- meter Band with Cardioid Diagram Directivity





The publication is devoted to the memory UR0GT.





By: Nikolay Kudryavchenko, UR0GT





The antenna has Cardioid Diagram Directivity.

There are some special cases when such diagram required for use.

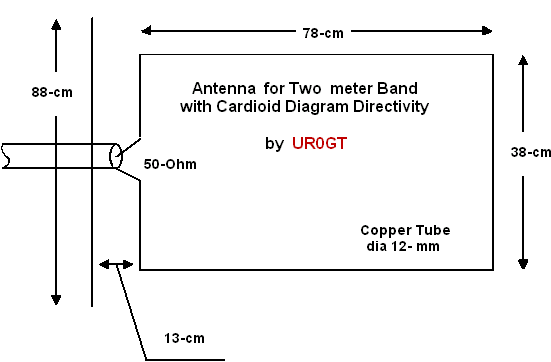

Figure 1 shows design of the antenna. Figure 2 shows impedance of the antenna (in free space). Figure 3 shows SWR of the antenna (in free space). Figure 4 shows DD of the antenna (in free space).



The MMANA model of the antenna with Cardioid Diagram Directivity may be loaded: http://www.antentop.org/016/card_016.htm



73 Nick



Credit Line: Forum from:

www.cqham.ru











Figure 1 Design of the antenna with Cardioid Diagram Directivity
