ANTENTOP- 01- 2012, # 016

3- Elements YAGI for the 20- meter Band

The publication is devoted to the memory of UR0GT.





By: Nikolay Kudryavchenko, UR0GT



Credit Line: Forum from: www.cqham.ru





It is very simple and efficiency YAGI antenna with wide pass band. Antenna has input impedance 50- Ohm. UR0GT- Match is used for matching the antenna with a coaxial cable. At the UR0GT- Match the fine tuning of the active input impedance made by changing distance between the loop and antenna driver. Capacitor is served for matching of the reactance. Figure 1 shows design of the antenna.



The MMANA model of the 3- Elements YAGI for the 20- meter Band may be loaded: http: //

www.antentop.org/016/3el_yagil_016.htm





Figure 2 shows input impedance of the 3- Elements YAGI for the 20- meter Band. Figure 3 shows SWR of the 3- Elements YAGI for the 20- meter Band. Figure 4 shows DD of the 3- Elements YAGI for the 20- meter Band



73 Nick

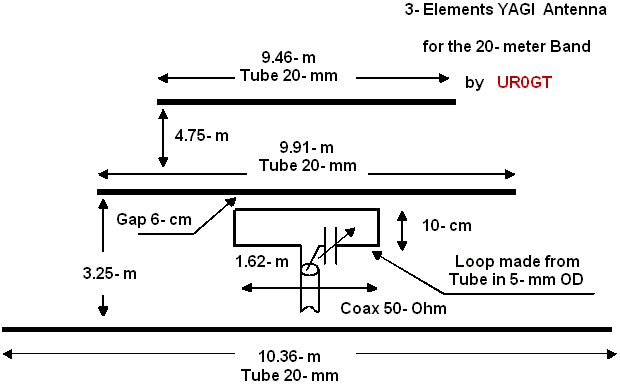

Figure 1 Design of the 3- Elements YAGI for the 20- meter Band
