ANTENTOP- 01- 2012, # 016

Half Loop Antenna for the 80-, 40,- 20,- and 15- meter Bands

The publication is devoted to the memory UR0GT.





It is very simple and efficiency antenna that works in several amateurs bands- 80,- 40,- 20,- and 15- meters. The antenna has input impedance 75 Ohm. Figure 1 shows design of the antenna.



The MMANA model of the Half Loop for the 80-, 40,- 20,- and 15- meter Bands may be loaded: http: //

www.antentop.org/016/hl_016.htm



Figure 2 shows input impedance of the antenna on the 80- meter Band. Figure 3 shows SWR of the antenna on the 80- meter Band. Figure 4 shows DD of the antenna on the 80- meter Band.



Figure 5 shows input impedance of the antenna on the 40- meter Band. Figure 6 shows SWR of the antenna on the 40- meter Band. Figure 7 shows DD of the antenna on the 40- meter Band.





By: Nikolay Kudryavchenko, UR0GT



Credit Line: Forum from: www.cqham.ru





Figure 8 shows input impedance of the antenna on the 20- meter Band. Figure 9 shows SWR of the antenna on the 20- meter Band. Figure 10 shows DD of the antenna on the 20- meter Band.



Figure 11 shows input impedance of the antenna on the 15- meter Band. Figure 12 shows SWR of the antenna on the 15- meter Band. Figure 13 shows DD of the antenna on the 15- meter Band.



73 Nick

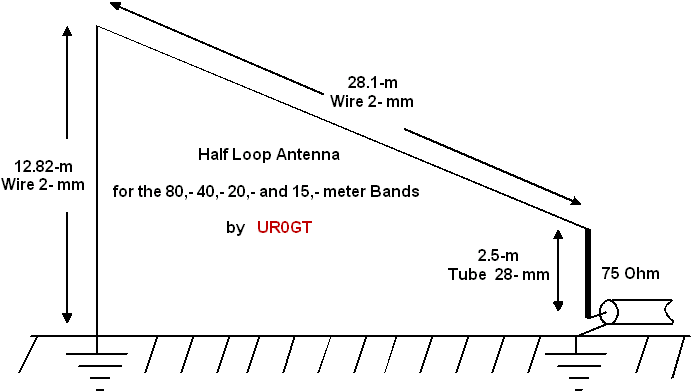

Figure 1 Design of the Half Loop for the 80-, 40,- 20,- and 15- meter Bands



www.antentop.org

Page-58

58 59 60 61 62
