Low Profile Antennas for the 435- MHz Band
Custom Search
|
ANTENTOP- 01- 2011 # 015 |
Low
Profile Antennas for the 435- MHz Band |
|
|
|
|
The publication is devoted to the memory
of UR0GT. |
|
|
|
|
|
|
By: Nikolay Kudryavchenko, UR0GT Credit Line: Forum from: |
|
Antenna "Shaiba"
(from Russian to English "Shaiba"is
a hockey puck) what is made by http://www.antennaxxi.ru widely is used in Russia. The antenna is used to in the
mobile communication, in the security and alarm system, and anywhere
where there is need to quick installation of an antenna. Antenna
"Shaiba" is low profile antenna
with a magnet base. It allows a quick installation of the antenna
to any iron (or magnet) surface. |
Antenna "Shaiba"
was used in mobile communication in the Moscow at the commemoration
of the 60- years from the end of the ww2. Site http://www.antennaxxi.ru listed high enough parameters for the Antenna "Shaiba".
However, is it a true? One ham is opened an old Antenna "Shaiba"
for an investigation. Figure 1 shows
design of the antenna. |
|
|
|
|

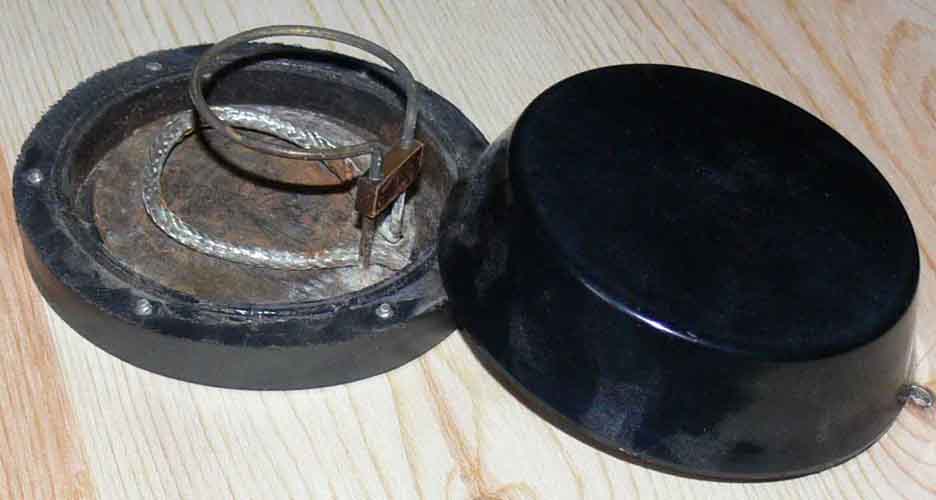

Figure 1 Design of the antenna "Shaiba" Credit Line: http://www.radioscanner.ru/forum/topic21444.html |
|
|
|
|
|
|
Page- 68 |
 |
 |
 |
 |
