Fuchs Antenna for the 2- meter Band











Vasily Perov DL1BA (ex UK8BA)

Credit Line: Forum at www.cqham.ru





The antenna was made and tuned while only 30- minutes. It needs a 126- cm length of wire in 3- mm diameter (9- AWG). Antenna has SWR 1.0:1.0 at 145.0- MHz and 1.7:1.0 at the borders of the 2- meter band. Figure 1 shows the design of the antenna. Figure 2 shows picture of the antenna.  Tuned antenna is placed into a plastic tube (used at electrical wiring) in 25- mm (one inch) diameter.

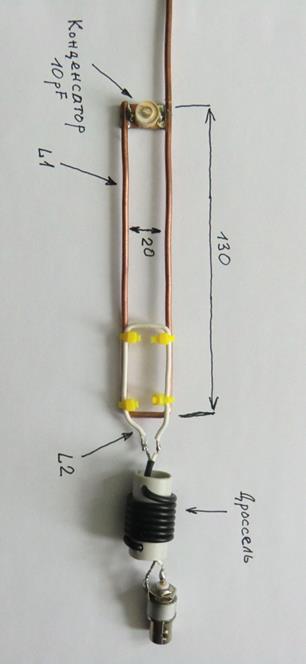

Figure 2 Picture of the Fuchs Antenna

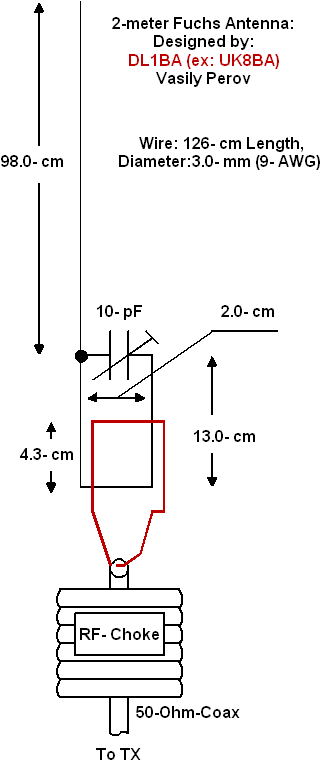

Figure 1 Design of the Fuchs Antenna for the 2- meter Band
