145- MHz J- Antenna with no- Mast RF Current





Figure 11 shows the J-Antenna with two choke resonators, one from the opposite side of the antenna another under the antenna. Figure 12 shows the current distribution in the system- J-Antenna with two choke resonators, one from the





opposite side of the antenna another under the antenna - Mast. Figure 13 shows impedance the antenna. Figure 14 shows SWR the antenna. Figure 15 shows DD the antenna.





Figure 11 J-Antenna with an with two choke resonators, one from the opposite side of the antenna another under the antenna

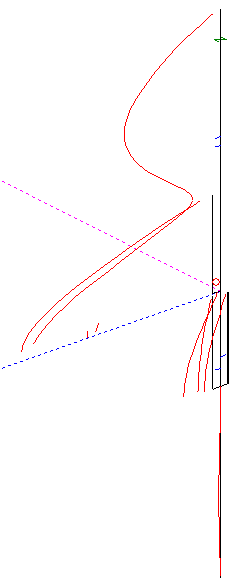

Figure 12 Current distributions in the system- J-Antenna with two choke resonators, one from the opposite side of the antenna another under the antenna - Mast
