ANTENTOP- 01- 2011, # 015

MOXON for 15 and 10- meter Bands






The publication is devoted to the memory UR0GT.



It is just Optimized Moxon for the 15 and 10- meter Bands. Figure 1 shows design of the Optimized Moxon for the 15 and 10- meter Bands



The MMANA model of the Optimized Moxon for the 15 and 10- meter Bands may be loaded:

http: // www.antentop.org/015/moxon_015.htm



Parameters of the antenna are shown at page 50 and page 51.



73 Nick







By: Nikolay Kudryavchenko, UR0GT



Credit Line: Forum from:

www.cqham.ru

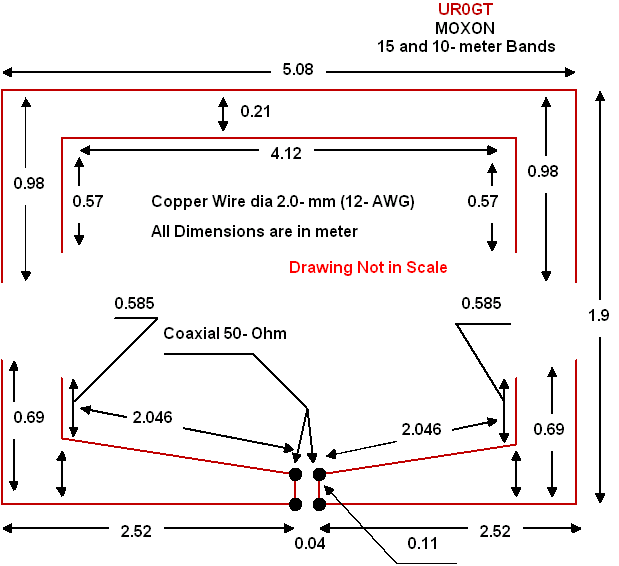

Figure 1 Optimized Moxon for the 15 and 10- meter Bands



www.cqham.ru



www.antentop.org

Page-49
