ANTENTOP- 01- 2011, # 015

Wire Antennas for the 160 and 80 meters




The publication is devoted to the memory UR0GT.





By: Nikolay Kudryavchenko, UR0GT



Credit Line: Forum from:

www.cqham.ru





The both antennas have resonance at 160 and 80- meter bands. There are hi- ohmic antennas, so, these ones need an ATU for the feeding. Figure 1 shows design of the wire antenna with resonances at 1.85 and 3.65- MHz.

The MMANA model of the wire antenna with resonances at 1.85 and 3.65- MHz

may be loaded: http: // www.antentop.org/015/wire_014.htm

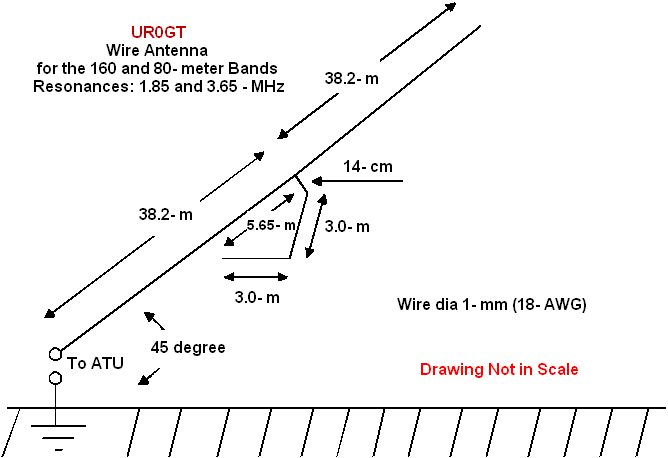

Figure 1 Design of the wire antenna with resonances at 1.85 and 3.65- MHz



Figure 2 shows Z of the Wire Antenna at the 160 meter Band (above real ground). Figure 3 shows SWR of the Wire Antenna at the 160 meter Band (above real ground). Figure 4 shows DD of the Wire Antenna at the 160 meter Band (above real ground).



Figure 5 shows Z of the Wire Antenna at the 80 meter Band (above real ground). Figure 6 shows SWR of the Wire Antenna at the 80 meter Band (above real ground). Figure 7 shows DD of the Wire Antenna at the 80 meter Band (above real ground)
