Directional Antenna for 434- MHz



The publication is devoted to the memory UR0GT.







By: Nikolay Kudryavchenko, UR0GT



The antenna for the 430- MHz has wide lobe in the diagram directivity at the horizon plane with good gain.



As reflectors for the antenna there may be used aluminum or copper foil, metal grid, or perforated metal plate.



The MMANA model of the Directional Antenna for the 430- MHz may be loaded: http: // www.antentop.org/014/430mhz_014.htm



Credit Line: Forum from:

www.cqham.ru





Parameters of the antenna are shown below.



73 Nick

Credit Line: Forum from:

www.cqham.ru

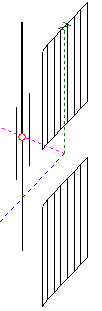

Figure 1 3D View of the Directional Antenna for the 430- MHz

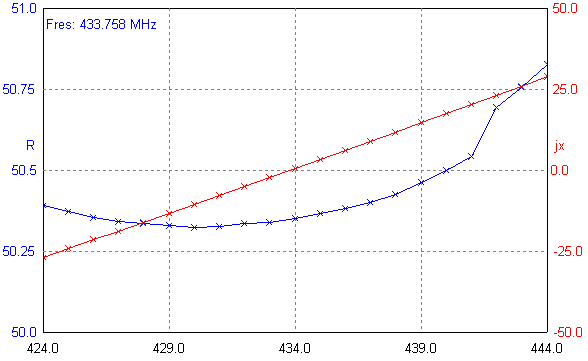

Figure 3 Z of the Directional Antenna for the 430- MHz
