ANTENTOP- 02- 2010, # 014

Vertical Inverted L for the 160, 80 and 40- meter Bands





The publication is devoted to the memory UR0GT.







By: Nikolay Kudryavchenko, UR0GT

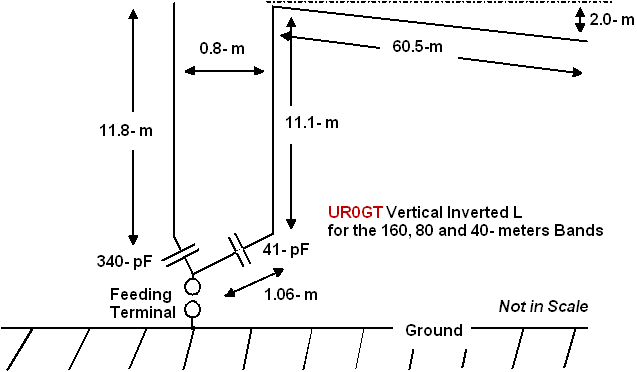

Vertical Inverted L for the160, 80 and 40- meter bands is shown on Figure 1.



Parameters of the antenna are shown below.



73 Nick

The MMANA model of the Vertical Inverted L for the 160, 80 and 40- meter Bands

may be loaded: http: // www.antentop.org/014/il_014.htm



Credit Line: Forum from:

www.cqham.ru











Figure 1 Vertical Inverted L for the 160, 80 and 40- meter Bands











www.cqham.ru
