ANTENTOP- 02- 2010, # 014

Asymmetrical I.V. for the 80 and 40- meters





The publication is devoted to the memory of UR0GT.







By: Nikolay Kudryavchenko, UR0GT



Asymmetrical I.V. for the 80- and 40- meter band is shown on Figure 1.



Parameters of the antenna are shown below.



73 Nick

The MMANA model of the Optimized Vertical for the 80- meters may be loaded: http: // www.antentop.org/014/iv_014.htm



Credit Line: Forum from:

www.cqham.ru

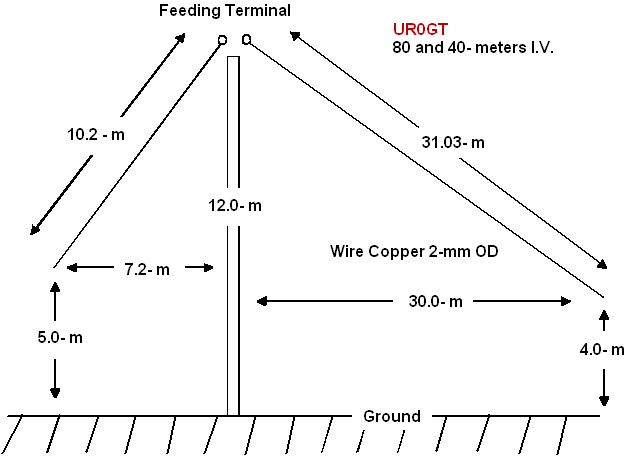

Figure 1 Asymmetrical I.V. for the 80- and 40- meter band





www.cqham.ru



http://www.antentop.org/

Page 45
