ANTENTOP- 01- 2010, # 012

Super Narrow DEWD Dipole for the 80- meters with A Stub Matching



The publication is devoted to the memory of UR0GT.





By: Nikolay Kudryavchenko, UR0GT



It is just a variant of a DEWD Dipole for the 80- meters with Stub Matching.

The antenna has enough good parameters- Pass Band and Efficiency.



The MMANA model of the antenna may be loaded:



http: // www.antentop.org/012/sn_dewd_012.htm, file Broadband 80m.8

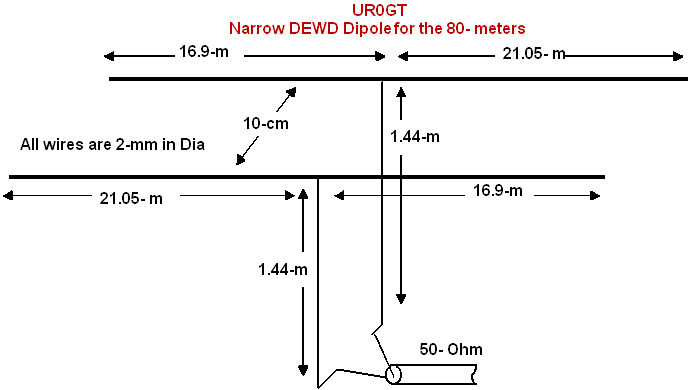

Figure 1 Design of the Super Narrow DEWD Dipole for the 80- meters with a Stub Matching

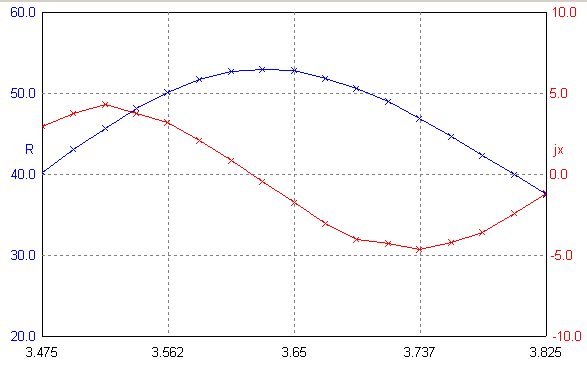

Figure 2 Z of the Super Narrow DEWD Dipole for the 80- meters with a Stub Matching

(30- m above the real ground)
