ANTENTOP- 01- 2010, # 012

Narrow DEWD Dipole for the 80- meters with

an Inductance Matching



The publications devoted to the memory UR0GT.





By: Nikolay Kudryavchenko, UR0GT



It is just a variant of a DEWD Dipole for the 80- meters with Stub Matching.

The antenna has enough good parameters Pass Band and Efficiency.



The MMANA model of the antenna may be loaded:



http: // www.antentop.org/012/nl_dewd_012.htm, file Broadband 80m.7

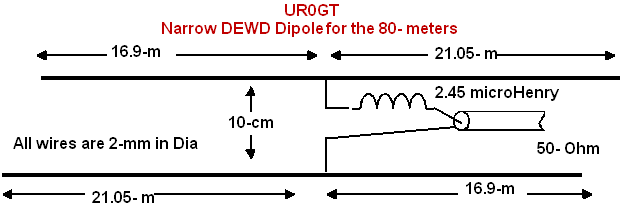

Figure 1 Design of the Narrow DEWD Dipole for the 80- meters with an Inductance Matching

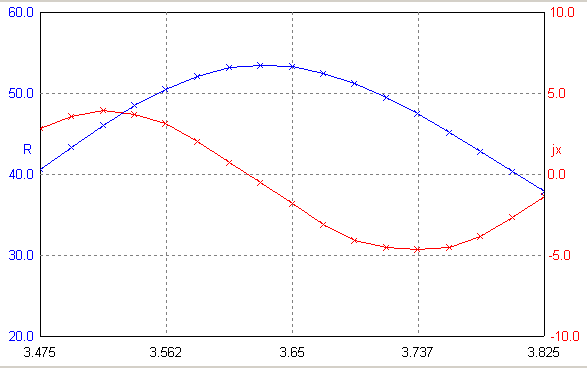

Figure 2 Z of the Narrow DEWD Dipole for the 80- meters with an Inductance Matching

(30- m above the real ground)
