ANTENTOP- 01- 2010, # 012

DEWD Dipole for the 80- meters with

A Stub Matching



The publications devoted to memory UR0GT.





By: Nikolay Kudryavchenko, UR0GT



It is just a variant of a DEWD Dipole for the 80- meters with Stub Matching.

The antenna has enough good parameters Pass Band and Efficiency.



The MMANA model of the antenna may be loaded:



http: // www.antentop.org/012/stub_dewd_012.htm, file: Broadband 80m.5

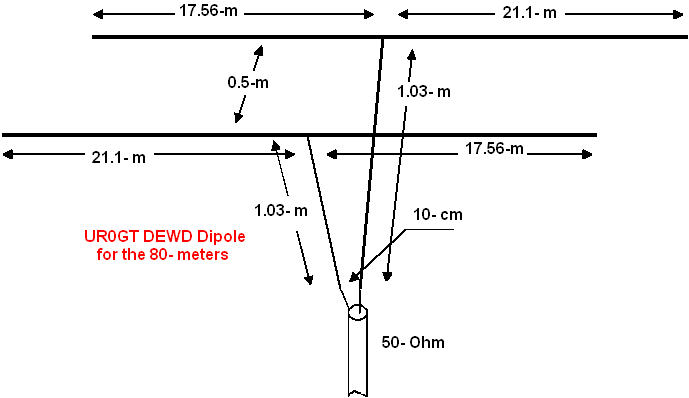

Figure 1 Design of the DEWD Dipole for the 80- meters with Stub Matching

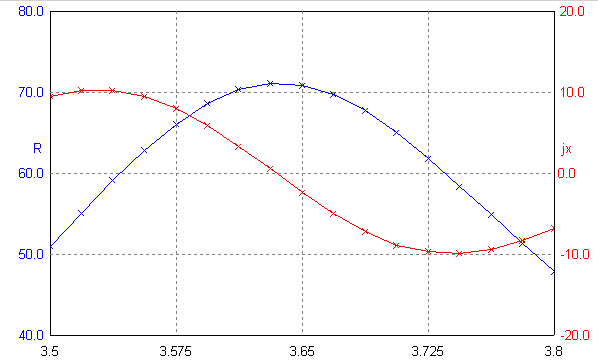

Figure 2 Z of the DEWD Dipole for the 80- meters with a Stub Matching

(30- m above the real ground)
