ANTENTOP- 01- 2009, # 011

Broadband Avia Antenna (DEWD)



The antenna is a symmetrical antenna, so, several ferrite rings at the feeding point will keep the symmetrical. Ferrite rings should be placed on the coaxial cable straight near “fork.”

File MMANA: http://www.antentop.org/011/avia_011.htm

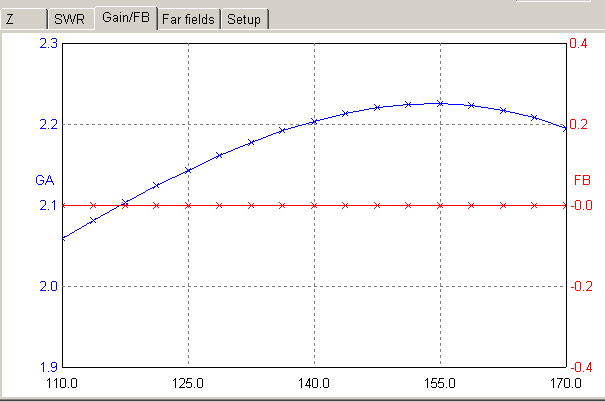

Gain of the Avia Antenna

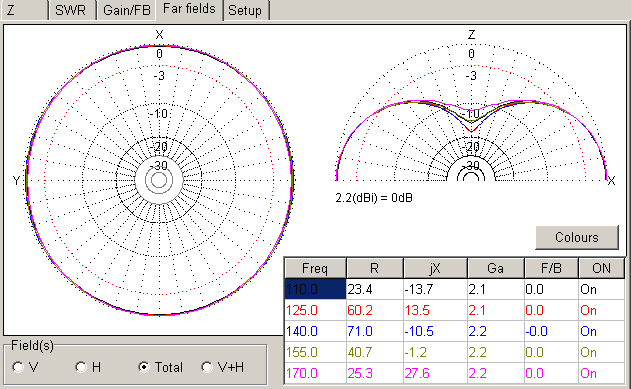

            Pattern of the Avia Antenna





http://www.antentop.org/

Page 63
