DEWD Dipole Antenna for the 80- meters

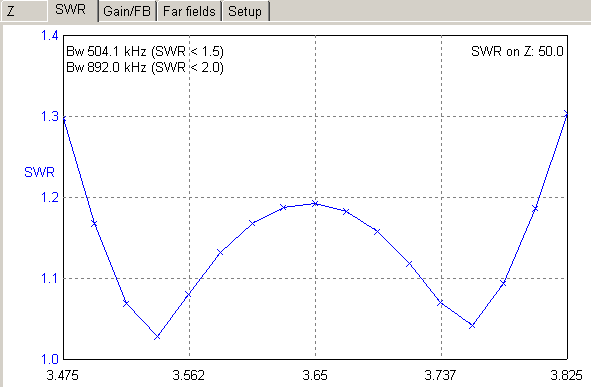

Figure 3 SWR of the DEWD Dipole Antenna (placed in the free space)

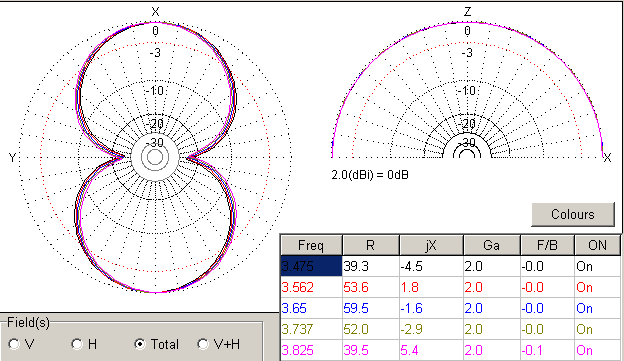

Figure 4 DD of the DEWD Dipole Antenna (placed in the free space)



Model for a shortened DEWD Dipole Antenna (file: Broadband 80m.1.maa) may be loaded:



http: // www.antentop.org/011/dewd_dipole_011.htm



Tuning of the antenna: To move the resonance needs to change the length of the “short” and “long” parts of the antenna. To shift the reactance- change the width of the antenna.



73, UR0GT, Nikolay
