Capacitor Code







Example 12: At a capacitorís body is number =2.2=KP. It means 2.2-μF dielectric Polypropylene

Film/Foil.

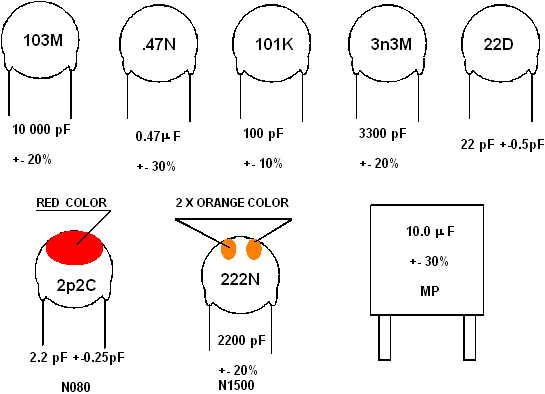

Figure 1 shows some others examples of Number, Letters and Color Code.





Table 2

Color Code (Cap Mark) for Temperature Coefficient



Black



Brown

Red

Orange

Yellow

Green

Blue

NP0

N030

N080

N150

N220

N330

N470



Violet

Red+

Orange



Orange+

Orange

Yellow+

Orange

Green+

Orange

Blue+

Orange

Red+

Violet

N750

N1000

N1500

N2200

N3300

N4700

P100





Table 3

Letter Code for Dielectric Material

KT



KC

KP

KS

MP

MKP

Polyester

Film/Foil

Polycarbonate Film/Foil

Polypropylene

Film/Foil

Polystyrene

Film/Foil

Metallized

Paper

Metallized

Polypropylene



MKC

MKT

Metallized

Polycarbonate

Metallized

Polyester

Figure 1
