UR5WCA Balcony Antenna for 7, 10 and 14





The measurement was made at distance 5 meter far the antenna.  At antenna clips an ATU (see References 1) was used with the antenna. ATU (between coax and transceiver) is a must for the antenna.



After numbers tests I did another modification.



1. Each vertical contains 20.2 meters of insulated copper wire in 1.5-mm (15- AWG) diameter.



2.       The coils (see Figure 4) were deleted and verticals were connected straight away to pre ATU (see Figure 5).



3.           A counterpoise (I used metal balcony hand-rail) was used with the antenna.

 After this modification noise level decreased, SWR was not changed. ATU (between coax and transceiver) is a must for the antenna. With the antenna I did some DX QSOs, for example,  with KH0DQ (10-MHz, 589 to me) and 5Z4LS (14-MHz, 599 to me).



Conclusion: Of course, it is only a surrogate antenna, but the antenna is worked, and works not bad.



References:



1.     http://www.qsl.net/gw6hmj/antenna.htm

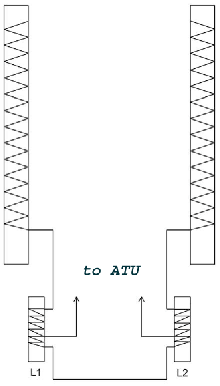

Figure 4 Modification of the UR5WCA Balcony Antenna





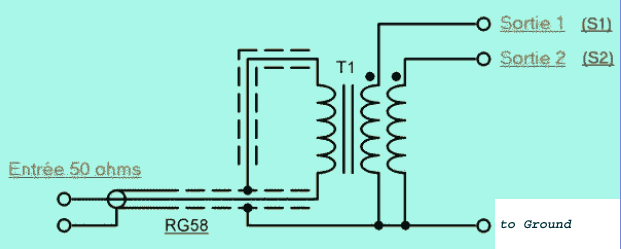

Figure 5 ATU of the UR5WCA Balcony Antenna
