Broadband
Indoor Antenna |
|
|
|
||
|

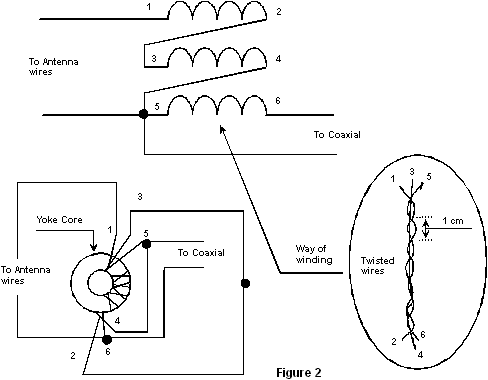

Figure 2 Transformer 9:1 |
||
|
|
||
|
It is possible to increase frequency range of the transformer
by decreasing number of its turns. After adjustment of the transformer
at active load 600 Ohm connect the transformer to real antenna and
do fine tuning by increasing/decreasing turns on 1-2 turns.

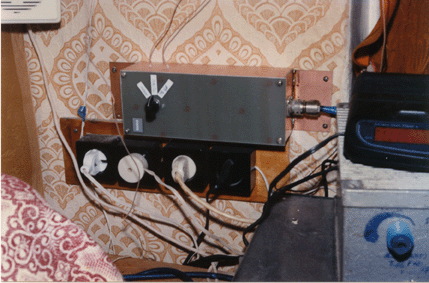

Box with RF transformers installed near
a window |

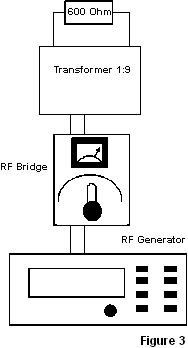

Figure 3 Circuit
for testing of a working range of the RF transformer |
|
|
|
||
|
|
|
|
|
|
||
|
|
||
|
|
