ANTENTOP- 01- 2005, # 007		Building Antennas
Figure 3 Direct feed WHAS
Usually the antenna can be matched at most of amateur HF bands. For better work the WHAS install ferrite rings (5- 20 ring with any permeability) at two ends of the coaxial cable going from TX to ATU.		At my experimenters with WHAS I have used ATUs and "Artificial Ground" described in reference [1].   References   1. Igor Grigorov. Antennas. Matching and Adjustment.- Moscow. RadioSoft, 2002. ISBN 5-93037- 087-7

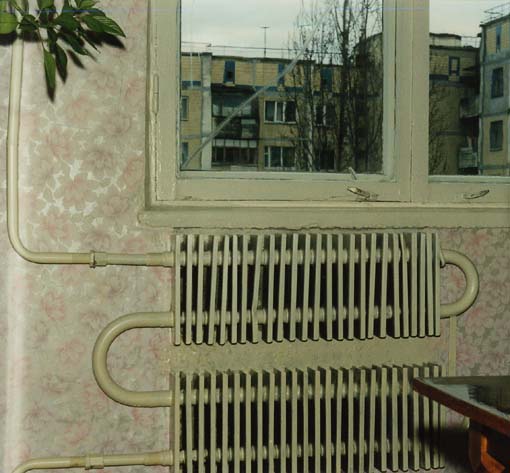

Battery of Heating
http://www.antentop.org/	Page 48
