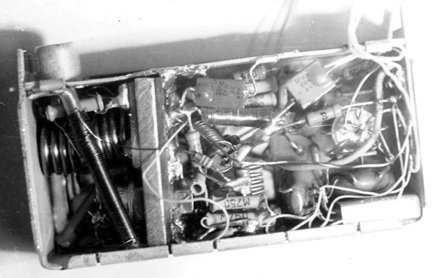

Simple QRP CW Transceiver for the 20 meters: by Igor Grigorov, VA3ZNW

It was… Well, when it was… I guess, it was at the end 80s and in the beginning of the 90s. Perestroyka. Gorbachev. Eltcin stand on a tank… Well, it has no matter to our transceiver. At the times I was the director of the cooperative "Vibrissa." Well, it was one- man cooperative, so, I was as the director as the main worker. I did equipment for radio amateurs.

The transceiver was one of my products. I have done near 50 samples of the transceiver. It worked very well. At 1991 I sent the description of the transceiver to the magazine of the "U- QRP- C." The article is used copies of the original schematics published by "U- QRP- C. Reference Book- #3," pages 9- 10.

PDF file, 720 KB (ANTENTOP-01-2005, pages: 67- 69)

Download PDF File!

HTML Version

Contents for AntenTop 01- 2005




QRP CW Transceiver for the 20 meters
