ANTENTOP- 02- 2004, # 006

Antenna for 900 MHz

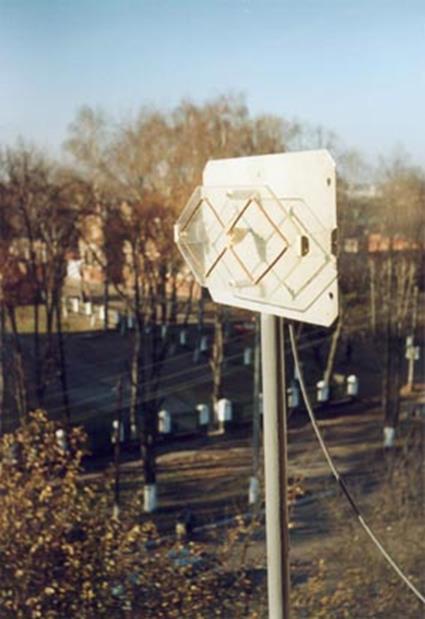

Antenna on the Roof

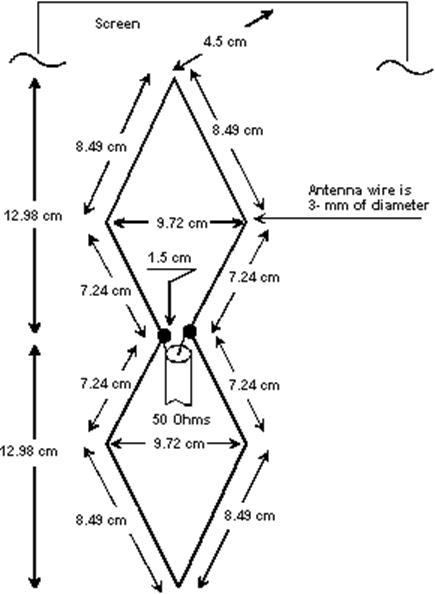

Schematic of the Antenna

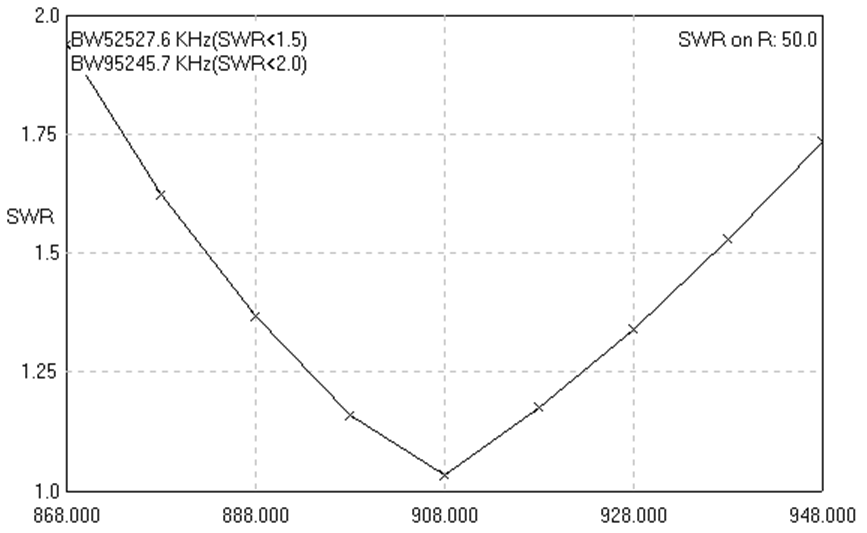

Antenna SWR







The antenna was placed on a plate made of a Plexiglas. The plate was installed by Plexiglas rods above the aluminum reflector.



The aluminum reflector was attached to a wooden mast. The antenna was connected to the base by a 5 meters length of a RG-58 coax cable.







http://www.antentop.org/

Page 70
