ANTENTOP- 02- 2004, # 006

Multirange  Trap Antennas

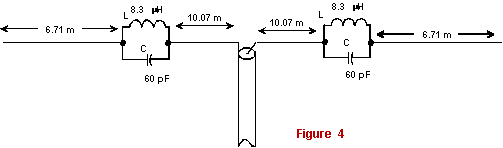

Figure 4 Antenna W3DZZ



meters, lengthening inductor for 80 meters, and shortening capacitor for 20, 15 and 10 meters. The antenna (Figure 4) does not work at WARC bands. However, the antenna does not work properly at 20, 15 and 10 meters. You can see data obtained with Free Antenna Simulation Program MMANA



(MININEC based) for the W3DZZ (see Figure 4). Antenna wire has diameter of 2 millimeters. You can see, that a SWR at 20, 15 and 10 meters is too high. It is impossible to find such length of the antenna and data for trap that the antenna works at all of the ranges! So, an ATU and a good coax is need for the antenna if you work at 20, 15 and 10 meters.

SWR at 80 meters W3DZZ Antenna

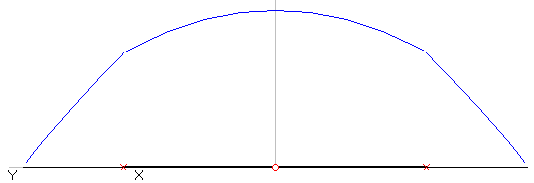

Current Distribution at 80 meters W3DZZ Antenna





http://www.antentop.org/

Page 51
