An absorbing Filter: by Igor Grigorov, RK3ZK

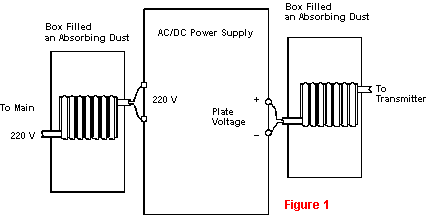

At ANTENTOP - 2, 2003 it was described a trap filter on main wires. However, the filter cannot be used at a high power or at super- broad bands transmitters. One reason is that it is impossible to retune a trap at a wide frequency range, other reason is the trap filter does reflection of the high-frequency energy back. So, wire to the filter can radiate also the high- frequency energy goes to transmitter and does additional interferences. So, in some case a trap filter can do more trouble the use.



PDF file, 115 KB (ANTENTOP-02-2004, p.: 73)

Download PDF File!

HTML Version
