ANTENTOP- 01- 2004, # 005 UR5LCV’s YAGI for Hams

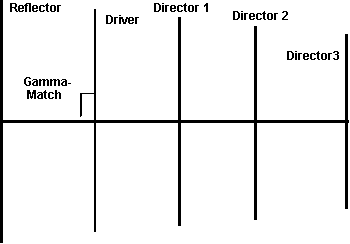

5-el YAGI for 14-MHz

5-el YAGI for 14-MHz


F, MHz

14.0

14.15

14.3

G, dBd

8.23

8.53

8.77

F/B, dB

20.03

28.74

19.6

Z, Ohm

28.3-j9.4

25.7+j1.6

22.8+j14.4

SWR

1:1.61

1:1.07

1:1.67



OD 25-mm

Reflector

Driver

Director 1

Director 2

Director 3

Length, cm

1046

1013

972

961

929

Spacing to Reflector, cm

0

372

746

1237

1694

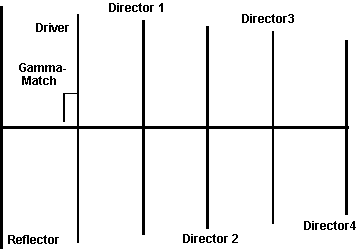

6el YAGI for 14-MHz

F, MHz

14.0

14.15

14.3

G, dBd

9.4

9.6

9.45

F/B, dB

17.46

26.31

18.1

Z, Ohm

32.9-j8.7

27.2+j0.3

23.3+j22

SWR

1:1.85

1:1.32

1:1.8



OD 25-mm

Reflector

Driver

Director 1

Director 2

Director 3

Director 4

Length, cm

1066

1016

979

973

971

952

Spacing to Reflector, cm

0

333

596

983

1574

2142
